Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire

Name: Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Brand: JUNSHENG
Price: 4 USD

Buy cheap Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire product

Model Number : HR-950

usage : Stripping

Brand Name : JUNSHENG

Wire type : Electronic Wire, Silicone Wire, Glass Fiber Cable

Cable Diameter : AWG8--AWG32

Twisting length : 9999mm

Operating Mode : Automatic

Product name : Automatic Cable Wire Stripping Twisting Machine

Cutting tolerance : ±0.002Lmm

MOQ : 5

Function : Wire Stripping

Price : $4,800

Place of Origin : Guangdong, China

Weight (KG) : 400

Dimension(L*W*H) : 170*75*150cm

Voltage : 220V/ 380V 60/50Hz

Contact Now

Product Overview

High Speed fully Automatic Wire Cutting and Stripping machine For Large Wire

This machine is used for high speed cutting,double end stripping,single-end stripping and half-stripping.The servo motor is used to control the cutting and stripping to make cutting length more precise.It combines the advantages of computerized wire cutting machine with easy adjustment and high efficiency of mechanical cutting machine.The function of the front clip and the post-release increases the applicability,speed,stability and accuracy of the machine.Cable type for USB, AC, RGB, 1394, DC power cables,single-strand,isolation cables and flat cable.

Products Description

HR-950 High Speed fully Automatic Wire Cutting and Stripping machine For Large Wire HR-950
Model	HR-950
Voltage	220V/380V
Power	1000W
Frequency	50HZ/60HZ
Drive Model	Eight-wheel Drive
Display	7inch LCD
Cable Diameter	AWG8--AWG32
Blade Changing	8,10,12,14AWG:16,18AWG;20,24AWG angle blade;24,28,30AWG flat blade
Cutting Length	42-9999mm
Stripping Length	3-100mm
Cutting Tolerance	±0.002Lmm
Max Cutting length	99999mm
Speed of Stripping	3200-4500PCS/H
Blade Material	Tungsten steel/High-speed steel
Net Weight	3900KGS
Gross Weight	400KGS
Package	Export Carton with Foam
Package Size	17580155cm
Machine Size	17075150cm
Delivery Time	Within 5 days after deposit
Warranty	Warranty for one year with lifetime maintain service

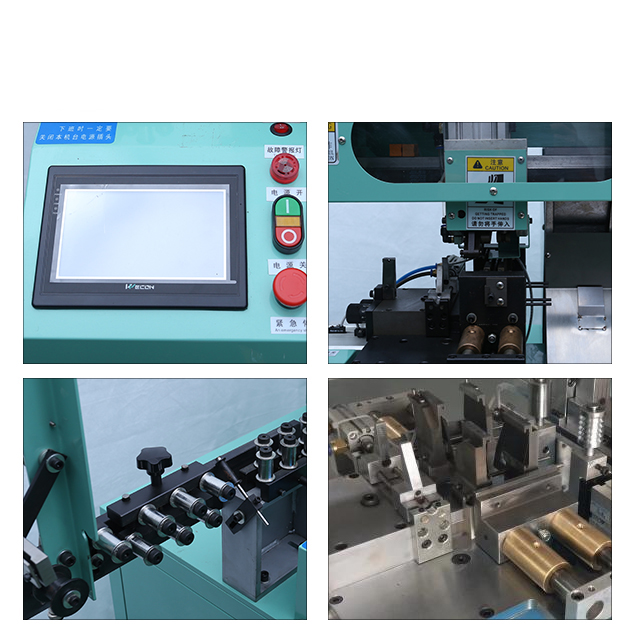

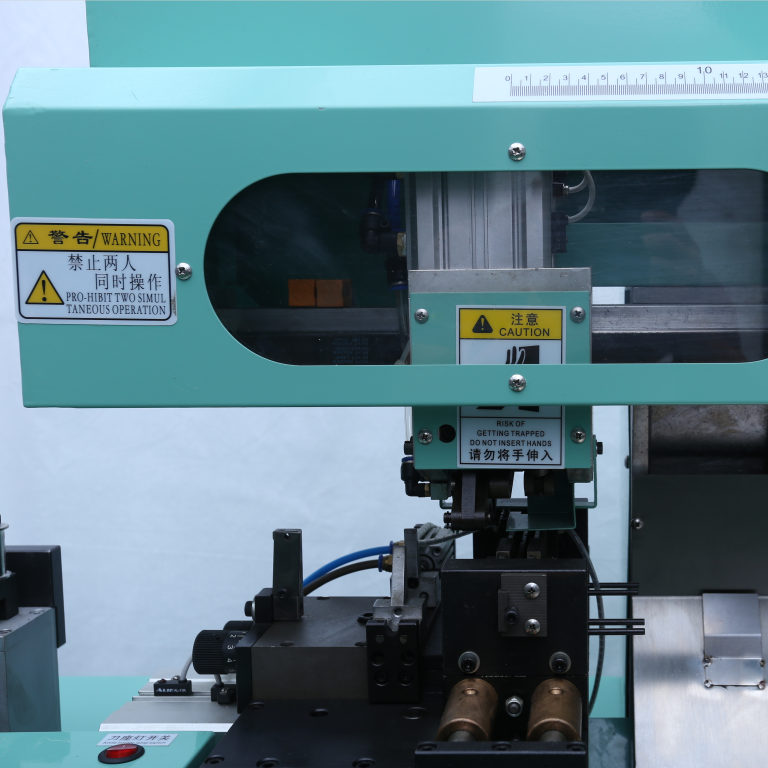

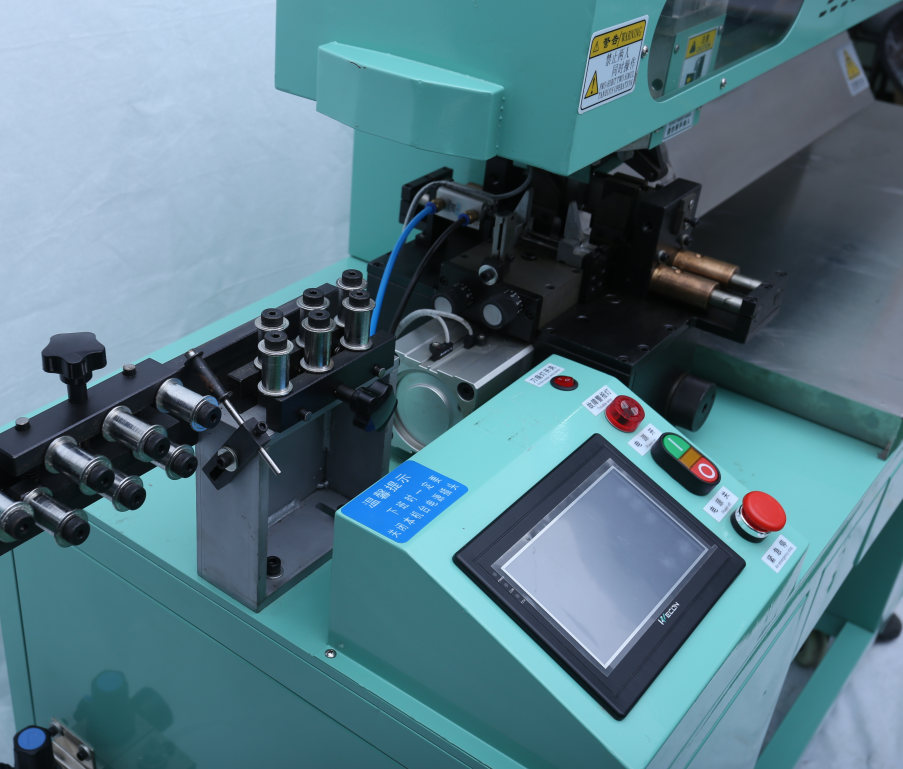

Details Images

Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire

Stripping Effect Display

Product packaging

Exhibition & customer Photos

Company Profile

FAQ

Q1. What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.

Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.

Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine. Besides, we provide 7x24 hours Online support, or face-to-face online
communications, free training are available.

Q5.Do you provide the user manual and operating video to support us ?
A: We will provide the English user manual for free and the operating video is available. Our software is all English
